CRANE ResistoPure® Type SIV-NxT Platinum Cured, Vacuum Wire PTFE Hose w/ Crimp Fittings

Applications

• Transfer Hose Applications
• In Process Applications
• Highly Toxic Chemicals
• Highly Hazardous Chemicals
• General Chemicals
• Food & Beverage
• Pharmaceutical & Sanitary
• Cosmetics



  Features And Benefits

  • Widely Used for Acid Loading and Unloading
  • Highly Toxic Applications
  • Highly Hazardous Applications
  • Complete Dual Containment Hose Assembly System
  • Anti Static PTFE Thermalok Liner
  • Smoothbore Extra Heavy Wall Teflon PTFE inner core provides outstanding resistance to corrosion at elevated temperatures and nearly universal material compatability
  • Monel400 Convoluted Metal Housing with Monel Braid Reinforcement
  • Maximum protection from premature failure and environmental release
  • Flared Thru Fitting design eliminates metal corrosion and process contamination
  • Vent system for Teflon per ASTM F1545 Lined Steel Pipe prevents pressure buildup on outside of liner and extends service life



    Technical Details

    DESIGN FEATURES

    • Flare Thru Beaded End Fitting Design with Split Flanges
    • Smoothbore Thermalok™ Liner
    • Reasonably Flexible
    • Abrasion Resistant SBR Cover
    • Medium Working Pressure Applications
    • Great Corrosion Resistance
    • Thicker Liner

    MATERIALS OF CONSTRUCTION

    • Anti Static Heavy Wall Teflon PTFE
    • Seamless Smoothbore Liner
    • Stainless Steel Wire Wrap with SBR Cover

    SIZE RANGE

    • 1″ to 4″ (25DN to DN100)

    PRESSURE RATINGS

    • 250 PSI®G to 600 PSI®G

    VACUUM RATINGS

    • 20″Hg to FULL VACUUM (CAUTION: HIGHER TEMPS or BENDING APPLICATIONS WILL DERATE VACUUM VALUES)

    TEMPERATURE RANGE

    • -20 °F to 300 °F

    BODY CONFIGURATION

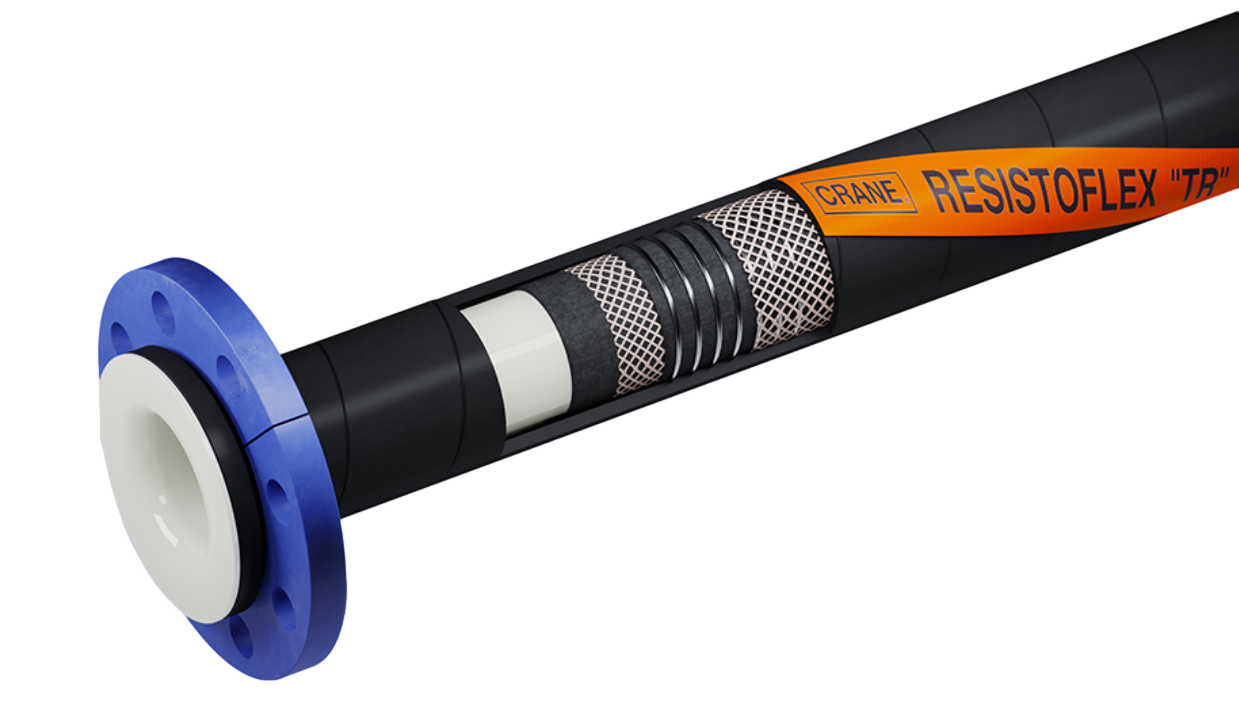

    • Seamless, Smoothbore Teflon PTFE Anti Static liner reinforced with Polyester Reinforcement, Stainless Steel Spring Wire Wrap and SBR rubber cover
    • Flare Thru Beaded End Style Fitting System with Split Flanges
